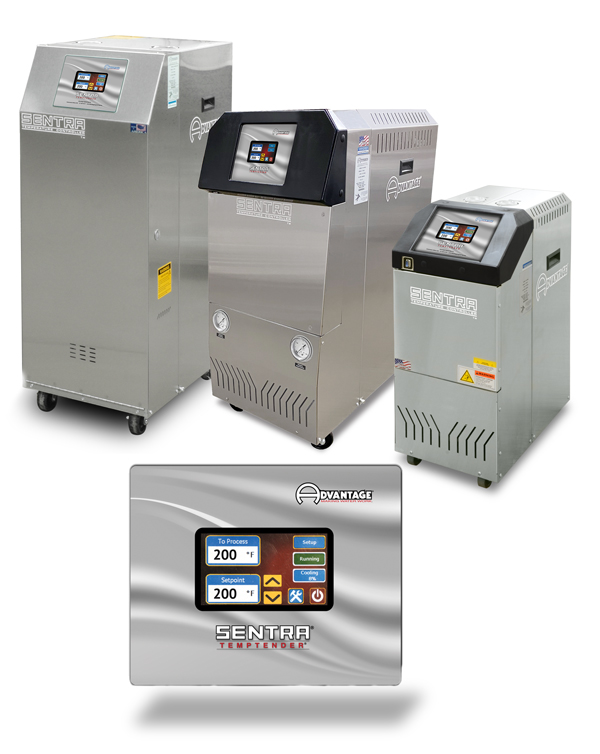

Temperature Control Unit : SR Series with T Control Instrument

The SR Series temperature control unit with T control instrument offers 10 - 34 kW heaters and ¾ - 7½ HP pumps for 35 to 100 GPM for process temperatures to 250°F.

Designed to preheat industrial processes to the desired operating temperature by recirculating water through the process. The electric immersion heater takes the circulating water to the setpoint temperature. A modulating valve precisely meters cooling water to maintain the setpoint.

Units with 10 kW Heaters

Model

Heater kW

Pump HP

Pump GPM

SRT-1035

10

¾

35

SRT-1045

10

1

45

SRT-1065

10

1½

65

SRT-1075

10

2

72

SRT-1080

10

3

78

SRT-1090

10

5

90

SRT-10100

10

7.5

100

Units with 16 kW Heaters

Model

Heater kW

Pump HP

Pump GPM

SRT-1635

16

3/4

35

SRT-1645

16

1

45

SRT-1665

16

1½

65

SRT-1675

16

2

72

SRT-1680

16

3

78

SRT-1690

16

5

90

SRT-16100

16

7½

100

Units with 24 kW Heaters

Model

Heater kW

Pump HP

Pump GPM

SRT-2435

24

3/4

35

SRT-2445

24

1

45

SRT-2465

24

1½

65

SRT-2475

24

2

72

SRT-2480

24

3

78

SRT-2490

24

5

90

SRT-24100

24

7½

100

Units with 34 kW Heaters

Model

Heater kW

Pump HP

Pump GPM

SRT-3435

34

3/4

35

SRT-3445

34

1

45

SRT-3465

34

1½

30

SRT-3475

34

2

72

SRT-3480

34

3

78

SRT-3490

34

5

90

SRT-34100

34

7½

100

Temperature Control Units, also known as TCU or Thermolators©, require a plant water supply source and are usually portable, built on casters to easily move the unit between processes.

New Feature

• Exclusive single piece high efficiency, high flow pump, motor & tank assembly.
• Up to 20% more effcient than previous models.
• Custom designed pump casing & impeller generates high flow rate.
• Turbulence generated by high flow rates improves heat transfer and promotes beter part quality.
• Horizontal orientation and internal seal area flush extend pump seal life.
• Open drip proof motor.
