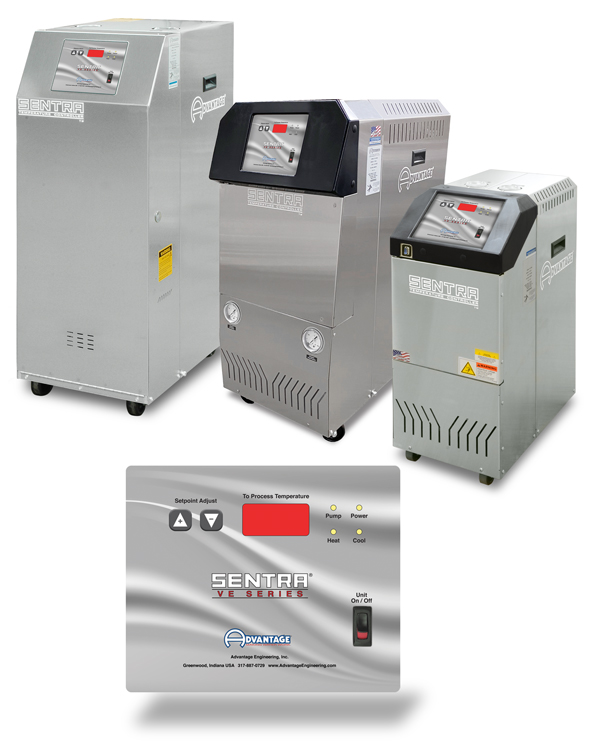

Temperature Control Unit : SR Series with V Control Instrument

The SR Series temperature control unit with V control instrument offers 10 - 34 kW heaters and ¾ - 7½ HP pumps for 35 to 100 GPM for process temperatures to 250°F.

Designed to preheat industrial processes to the desired operating temperature by recirculating water through the process. The electric immersion heater takes the circulating water to the setpoint temperature. A modulating valve precisely meters cooling water to maintain the setpoint.

Units with 10 kW Heaters

Model

Heater kW

Pump HP

Pump GPM

SRV-1035

10

¾

35

SRV-1045

10

1

45

SRV-1065

10

1½

65

SRV-1075

10

2

72

SRV-1080

10

3

78

SRV-1090

10

5

90

SRV-10100

10

7.5

100

Units with 16 kW Heaters

Model

Heater kW

Pump HP

Pump GPM

SRV-1635

16

3/4

35

SRV-1645

16

1

45

SRV-1665

16

1½

65

SRV-1675

16

2

72

SRV-1680

16

3

78

SRV-1690

16

5

90

SRV-16100

16

7½

100

Units with 24 kW Heaters

Model

Heater kW

Pump HP

Pump GPM

SRV-2435

24

3/4

35

SRV-2445

24

1

45

SRV-2465

24

1½

65

SRV-2475

24

2

72

SRV-2480

24

3

78

SRV-2490

24

5

90

SRV-24100

24

7½

100

Units with 34 kW Heaters

Model

Heater kW

Pump HP

Pump GPM

SRV-3435

34

3/4

35

SRV-3445

34

1

45

SRV-3465

34

1½

30

SRV-3475

34

2

72

SRV-3480

34

3

78

SRV-3490

34

5

90

SRV-34100

34

7½

100

Temperature Control Units, also known as TCU or Thermolators©, require a plant water supply source and are usually portable, built on casters to easily move the unit between processes.

New Feature

• Exclusive single piece high efficiency, high flow pump, motor & tank assembly.
• Up to 20% more effcient than previous models.
• Custom designed pump casing & impeller generates high flow rate.
• Turbulence generated by high flow rates improves heat transfer and promotes beter part quality.
• Horizontal orientation and internal seal area flush extend pump seal life.
• Open drip proof motor.
