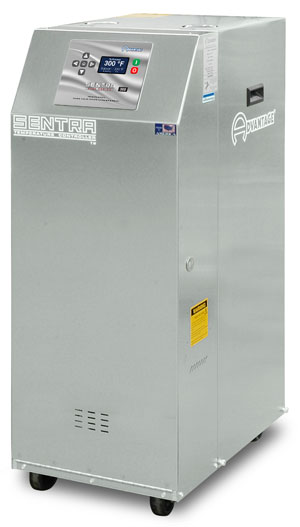

Temperature Control Unit | Water Circulating | Up To 300°F

Model SRG-3445-300

Click Here for An Immediate Factory Pricing Quote For the SRG-3445-300 ▶

Pricing Is Now On Display

Product Overview

Water temperature control units are used to preheat industrial processes to the desired operating temperature by recirculating water through the process and engaging the unit’s electric immersion heater.
After reaching the operating temperature, temperature control units can continue to add heat or become a cooling device by precisely exchanging & mixing cooling water* with the recirculated water to maintain tight temperature control.
This temperature control unit requires a plant water supply source.
Temperature control units are portable, built on casters to easily move the unit between processes.
Temperature can for these units is 32°F to 250°F.

Price is Loading

Specifications

Specification Notes:

Since product innovation and improvement is our constant goal, all features and specifications are subject to change without notice or liability. Selection of certain optional features may change listed specifications.
Derate heater output by 25% for 208/3/60 operation.
The Sentra cannot achieve temperatures below the cooling water supply temperature and will provide warmer water to process compared to the cooling water temperature even with the cooling valve fully open. Consult Factory for more information.
Full load amps are higher than run load amps and must be used for sizing disconnects and supply wiring. Not for construction. Consult factory for power requirements of unit as configured and on selected options.
Consult factory for 50HZ operation.
Unit weight crated for shipment.

Features

NEW
Exclusive Single Piece High Efficient, High Flow Pump, Motor & Tank Assembly
Process Pump
High flow centrifugal pump and motor in one assembly
Custom designed pump casing & impeller generates high flow rate
Turbulence generated by high flow rates improves heat transfer and promotes better part quality
Horizontal orientation and internal seal area flush extends pump seal life
Integral fluid bypass reduces performance problems associated with low flow
Open drip proof motor
Electrical
DIN rail mounted UL approved finger safe electrical components
Color coded & numbered wires are easy to identify for service purposes
Control instruments are plug to plug for easy removal for service
IEC motor starter with overload, phase loss & short circuit protection
Rugged IEC mechanical heater contactor
Cabinetry
Stainless steel electrical cabinet & enclosure panels
3" casters for portability

Heater
34kw
1 horsepower
Low water density for long operational life
High temperature rated stainless steel sheath minimizes damage from dissolved chemicals in water
Flange mounted for easy service
Cooling Valve
Precision control solenoid cooling valve
Pulsed cooling, controlled by the microprocessor instrument
For precise temperature control
System Limits
Discreet high temperature limit switch
Control circuit fuse
Process pressure relief valve
Water supply switch prevents operation when water supply is below 55 psi
Pressure Gauges
Provides full process performance information
To process
From process
Warranty (standard units)
Pump Seal : Lifetime
Control Instrument : 4 years
Heater & Cooling Valve : 2 years
Mechanical system : 2 years
Warranty Document
